SANCASSIANO-Fixed-Bowl-Spiral-Kneader-f3x-40-200

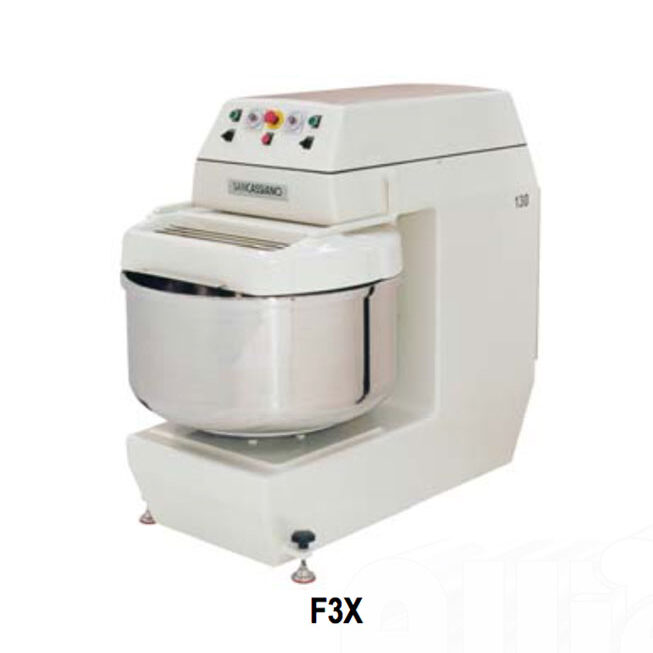

SANCASSIANO Fixed Bowl Spiral Kneader – Series F3X 40-200

SERIES F3X 40 – 200

Features: steel structure – bowl (equipped with rotating central post) and spiral mixing tool in food-grade stainless steel – 2 independent motors 2 timers – 1st and 2nd speed of the mixing tool – special executions (for “hard doughs”) with strengthened motor and spiral driving with parallel axes gearbox (“head” of the industrial mixer series SE) – inversion of bowl rotation direction – jogging push button for easy discharge. Controls located on head of mixer wheels and locking devices.

SKU: f3x Categories: , , , ,

Description

Spiral F3X 40 (BOWL VOLUME 70 LT. – TOOL’S MOTOR POWER 3,0 KW)

Spiral F3X 60 (BOWL VOLUME 85 LT. – TOOL’S MOTOR POWER 3,7 KW)

Spiral F3X 80 (BOWL VOLUME 140 LT. – TOOL’S MOTOR POWER 5,0 KW)

Spiral F3X 100 (BOWL VOLUME 190 LT. – TOOL’S MOTOR POWER 7,0 KW)

Spiral F3X 130 (BOWL VOLUME 205 LT. – TOOL’S MOTOR POWER 8,0 KW)

Spiral F3X 160 (BOWL VOLUME 250 LT. – TOOL’S MOTOR POWER 10,0 KW)

Spiral F3X 200 (BOWL VOLUME 295 LT. – TOOL’S MOTOR POWER 11,0 KW)



SERIES SF 250 – 300

SF250 and SF300 with different line and controls on the side, not on the head. Special kneaders with spiral tool driven by parallel axis gearbox (“head” of the mixer as in the industrial series SE)

Spiral SF 250 (BOWL VOLUME 320 LT. – TOOL’S MOTOR POWER 12,0 KW)

Spiral SF 300 (BOWL VOLUME 360 LT. – TOOL’S MOTOR POWER 13,0 KW)



Special realization “Self tipping”

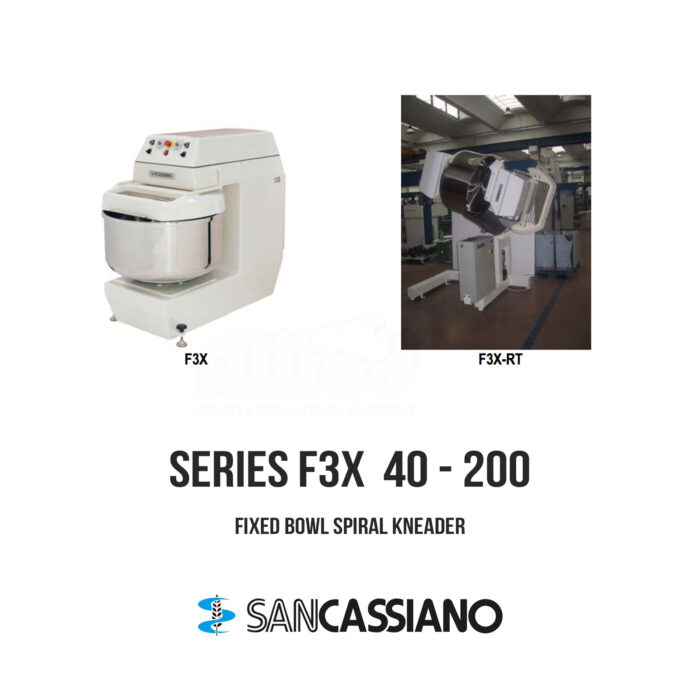

SERIES F3X-RT 130-300

Features: main features as per F3X series, but controls beside the kneader. Left or right tilting side to be specified at order together with discharge height and dimensions of mixing room. All elevator and tipping controls by “hold-to-run” system – Discharging at table height (1,10 m) by hydraulic system.

Spiral F3X 130RT for table tipping (1,10 mt.) (BOWL VOLUME 205 LT. – TOOL’S MOTOR POWER 8.0 KW)

Spiral F3X 160RT for table tipping (1,10 mt.) (BOWL VOLUME 250 LT. – TOOL’S MOTOR POWER 10,0 KW)

Spiral F3X 200RT for table tipping (1,10 mt.) (BOWL VOLUME 295 LT. – TOOL’S MOTOR POWER 11,00 KW)

Spiral F3X 250RT for table tipping (1,10 mt.) (BOWL VOLUME 320 LT. – TOOL’S MOTOR POWER 12,0 KW)

Spiral F3X 300RT for table tipping (1,10 mt.) (BOWL VOLUME 360 LT. – TOOL’S MOTOR POWER 13,0 KW)

Special kneaders with spiral tool driven by parallel axis gearbox (“head” of the mixer as in the industrial series GSE)
