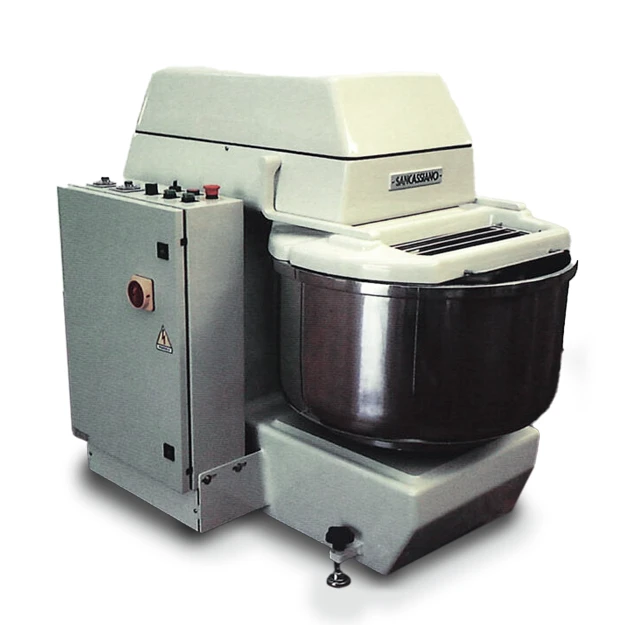

SANCASSIANO F160 – Fixed Bowl Spiral Mixer

Functional Features

Twin speed with slow speed bowl reverse
Two timers for independent programming of slow and fast speed
Separate push button for manual jogging of bowl during discharge

Bowl Capacity (50%) Hydration

Flour = 220 lbs/100 Kg

Dough = 350 lbs/160 Kg

Volume = 265 Qts/250 It

SKU: F3X160 Categories: Bakery Equipment, Mixers, Mixing Equipment, SanCassiano, Spiral Mixers

Description

Description

Mechanical Features and Construction Characteristics

Main frame in welded steel
Mixing Bowl and Spiral Tool in stainless steel
Strengthened polyurethane head cover
Safety bowl guard in food grade PVC
Finish in baked antioxidant, catalytic, water-based (non toxic) paint
Spiral shaft constructed in single piece steel fusion
Spiral and Bowl drive shafts supported by two radial plus one axial bearings
Bowl driving system by belt transmission

Unique Construction Features (For Bid Specification)

Heavy-duty Spiral driving system by parallel axis gearbox and belt transmission
Separate, water-tight low voltage control box with safety interlock
Larger diameter Spiral and rotating center post for more gentle mixing
Machine mounted on four casters with adjustable feet (eg: for easy sanitation)
Can run full listed dough capacity even with 50% hydration recipes
